Highlights

All-in-One Control
NSPanel Pro supports unlimited SONOFF devices—from smart lights and cameras to sensors and switches. Future SONOFF devices will also be compatible, ensuring long-term scalability.
Built-in Zigbee Hub
Easily batch-add Zigbee devices via the touchscreen. Built on the stable Zigbee 3.0 protocol, it ensures reliable connectivity and extensive coverage.
Smart Security
Create up to 3 custom security modes with different arming configurations. Once armed, the triggered sensor will activate an alarm on the panel and send instant alerts to your phone.
Central Heating Control
Managing the whole-house heating system to deliver constant comfort to every space—achieving the ideal living climate through a truly integrated whole-home temperature control system.
Matter Bridge Break Ecosystem Barriers
The Matter Bridge feature seamlessly integrates non-Matter devices into the Matter ecosystem, enabling voice control via Siri, Alexa, Google Home, and other third-party Matter-supported apps.
Built-in F-Droid App Library
The NSPanel Pro now supports the F-Droid app store, allowing users to explore and install third-party applications. Download Home Assistant to create a powerful smart home hub or discover other tools to unlock the full potential of the device.
One-Click Synchronization of Zigbee Devices to Home Assistant
Use the dedicated “Home Assistant” entry for NSPanel Pro in the eWeLink App to batch synchronize Zigbee devices connected to NSPanel Pro into your Home Assistant.
Live Camera Monitoring
NSPanel Pro functions as a real-time display for the supported cameras. Monitor key areas like the living room, garage, or bedroom directly from the panel at any time.

Applications

Central smart-home control: manage lights, cameras, scenes, and thermostat functions in one hub.
Visual thermostat: display temperature/humidity, control Zigbee‑connected heating/cooling devices, and view logs.
Security interface: set arming modes, receive sensor alerts, and view live feed.
Scene launcher: trigger preconfigured scenes (e.g., “Away”, “Movie night”) with one tap or voice command.
Family-friendly operation: simple UI for guests/kids to control shared smart devices.

Specification

Model	86 Version: NSPanel86PB/NSPanel86PW 120 Version: NSPanel120PB/NSPanel120PW
CPU	Quad-core ARM Cortex-A35 CPU
GPU	Mali G31-2EE GPU
Soc	NSPanel86PB/NSPanel86PW: PX30 NSPanel120PB/NSPanel120PW: RK3326-S
Rating	100-240V~ 50/60Hz 5W MAX,150mA MAX
Wireless connectivity	Wi-Fi IEEE 802.11 b/g/n 2.4GHz, Zigbee 3.0
Screen size	NSPanel86PB/NSPanel86PW: 3.95″ (Capacitive touch panel) NSPanel120PB/NSPanel120PW: 4.7″ (Capacitive touch panel)
Screen resolution	NSPanel86PB/NSPanel86PW: 480×480 NSPanel120PB/NSPanel120PW: 750×1334
Touch control	Support multi-touch
Audio output	7Ω, 1W speaker
Microphone	Two channels digital microphones
Light sensor	Adjust brightness according to ambient light automatically (ICC light sensor)
Net weight	NSPanel86PB/NSPanel86PW: 180g NSPanel120PB/NSPanel120PW: 221g
Applicable place	Indoor
Working temperature	0℃-40℃
Working humidity	5%~90% RH, non-condensing
Working height	Less than 2000m
Color	NSPanel86PW/NSPanel120PW: White NSPanel86PB/NSPanel120PB: Dim Gray
Product dimension	NSPanel86PB/NSPanel86PW: 86x86x39.5mm NSPanel120PB/NSPanel120PW: 122.5×74.5×39.5mm
Casing materials	PC+CRS
Certification	NSPanel86PB/NSPanel86PW: CE/KCA/SRRC/RoHS NSPanel120PB/NSPanel120PW: CE/FCC/ISED/RoHS
Executive standard	EN 62368-1

eWeLink Key Features

eWeLink APP Feature

Device Home Page Functions
Key Features		Feature Description
Matter		View the number of Matter networks the device has been added to via card display; tap to enter the Matter Bridge settings.
Voice Call		Use NSPanel Pro for voice conversations with a smartphone, a Cast tablet, or another NSPanel Pro.
Theme		Select screen UI styles for NSPanel Pro: Classic Simple
Split Screen		Add, remove, or edit Screens. Includes the following screen types: Split Screen (Allows flexible combination of devices or manual scenes from the eWeLink app, which can be added as widgets to the interface.) Thermostat Device Consumption Webpages Central Heating
Gateway		Add Zigbee sub-devices and configure Smart Security modes within this screen.
Thermostat		By adding external temperature sources and execution devices, you can build up to 10 thermostat screens and maintain the temperature within a set range through heating/cooling. Enable/Disable Manual mode/ Auto mode Action device Device type: Heater/Cooler Temp. Accuracy Selected Device State Detection Interval
Energy		Select devices with energy statistics functions to track their daily energy consumption over a week.
Webpages		Add quick access links in the APP, which will allow you to jump directly to the corresponding webpages from the quick access page on NSPanel Pro.
Reminder		Enter text in the “Reminder” in the eWeLink APP and your message will be received on the NSPanel Pro screen.

Device Settings
Key Features		Feature Description
Third-party Platforms	Alexa	You can query the Smart Security mode or status of NSPanel Pro.
	Google Home
	IFTTT
Guest mode		Restrict the NSPanel Pro to control only and prevent any configuration change.
Assign location		Set up the home and room where the device is located.
Smart Scene	Trigger Condition	Home mode/Away mode/Sleep mode ON/OFF/Trigger an alarm/Stop Alarm
	Execution Action	Security Mode: Arm/Disarm Alarm Beeps: ON/OFF Alarm Tone: Choose from 15 options Alarm Volume: 1%~100% Alarm Duration: Keep Alarming/Custom Screen Status: ON/OFF Sleep Awake
LAN Control		A control method where the app communicates directly with the device over the same router, without going through the cloud platform. On/Off
Home Assistant		Export Zigbee devices to Home Assistant via MQTT Discovery protocol.
Matter Bridge		You can enable the Matter pairing code to add NSPanel Pro as a bridge to third-party Matter applications. Manage added Matter networks and the synchronization of non-Matter sub-devices, then freely select which sub-devices to expose to these applications.
BT Home		Support adding BTHome devices and syncing them to the Matter platform for control.
eWeLink-Remote Sub-devices		If you have also purchased the SONOFF R5, you can add it as a “sub-device” to the NSPanel. By using the “Scene Function” in the eWeLink app, the two devices can be linked, allowing the Sonoff R5 to function as a convenient wireless remote controller.
Temp. & Humi. Feeds		Display the Temp. & Humi. by supported external device. The external device list comes from other devices that support temperature and humidity detection under the eWeLink account
Temperature unit		Switch the temperature unit display: ℉ ℃
Smart Security	Home mode	Customize 3 modes by setting different arming devices. After arming, once the sensor is triggered, the panel will alarm, and you will receive a notification alert on the phone. Enable/Disable Name Alarm Beep Setting Messages and notifications on/off Delay Arm Setting Delay Alarm Setting List of sub-devices that support triggering alarms
	Away mode
	Sleep mode
Security Logs		Records of security mode data.
Security Code		After enable, you need to enter a password to cancel the alarm or reset the device. Set Security Code: 4 digits Unlock with the Security Code: Disarm/Reset
Call Records		Records of the Voice Call of NSPanel Pro.
Pilot Feature		Turbo mode: Enhance Zigbee signal ON/OFF Zigbee Mode: Switch NSPanel Pro Zigbee mode Switch to Hub Mode Switch to Router Mode
Wallpaper		Choose preset wallpapers in NSPanel Pro, or upload your images through the eWeLink APP within the local network to use as custom wallpapers.
Ringtone		Upload an audio clip as a ringtone for NSPanel Pro
Turn On Pairing Mode		Enable the Matter pairing code to sync NSPanel Pro to third-party Matter applications by scanning the QR code or entering the code.
Reboot		Make the device reboot.
Delete Device		Remove the device from the eWeLink platform.

On-Screen Capabilities

Notice:
The following features require the NSPanel Pro to be added to the eWeLink app before use. Some features must be configured within the eWeLink app.

On-Screen Feature
Key Features	Feature Description
Home Screen	Displays current time, weather, and date information. *When you set the Theme to Simple mode, the widgets will appear on the home page.
Feature Screen	Displays different functional screens based on the order set in eWeLink APP — Split Screen.
Add Device	After entering pairing mode, Zigbee devices or eWeLink-Remote sub-devices can be added within 180 seconds. Successfully added devices will appear directly in the device list.
Notice	View historical alert records related to the device.
Alarm	Set alarms or timers.
Theme	Change wallpaper. You can select from default wallpapers or upload custom wallpapers via the eWeLink APP.
Cameras	Add RTSP cameras and DIY cameras. Successfully added devices will appear directly in the device list.
Web Shortcut	Automatically discovers Home Assistant or eWeLink Cube on the same LAN. Once added, you can access and control them from the screen. Note: This feature is removed in versions after v4.0.0.
Matter Bridge	You can enable the Matter pairing code to connect NSPanel Pro as a bridge to third-party Matter applications, while monitoring the real-time sync status of non-Matter devices.
F-Dorid	Leverage the built-in Android OS and free, open-source F-Droid app store to discover and install various third-party apps, unlocking diverse new possibilities for your NSPanel Pro.
Apps	Support any installed app as your Home App while maintaining core functions like NSPanel Pro control in the background, allowing Smart Scenes & Smart Security features to trigger and execute normally.

On-Screen Settings
Settings	Settings Description
Wireless network	Scan for 2.4G Wi-Fi networks in the environment and add a network.
Bluetooth	Connect to a Bluetooth speaker for external audio playback. On/Off
eWeLink Account	View the currently linked eWeLink account information or learn more about the system.
Thermostats	Set up a central heating system to keep every room at a constant temperature. Name Temp unit Boiler actuator Rooms Room name TRV/Thermometer only/Thermometer+Actuator Device name Anti-frost temp
Set Time Zone	Adjust time settings, including: 12-hour or 24-hour format Time zone
Weather	After selecting a city, view local weather information on the home screen.
Display	Modify display-related settings: Brightness: Auto / 0%–100% Auto-Lock Screen Saver Proximity Settings Proximity Sensor Wake on Proximity
Language	Change the system language on the screen
Volume	Adjust the system volume on the screen
Advanced Setting	It features system-level Android settings, including battery management, system-level screensaver, and app cache clearance.
About	View system information about the device, including: Name Software Version Cube Version Auto Firmware Download Device ID IP Address Feedback CPU Usage Memory Usage Reboot Reset

Installation and Configuration Guide

86 Version (NSPanel86PB/NSPanel86PW):

120 Version (NSPanel120PB/NSPanel120PW):

Wiring Diagrams

Notice：

NSPanel Pro does not support direct load control.

NSPanel86PB/NSPanel86PW

NSPanel120PB/NSPanel120PW

Terminals		Wires
N	Neutral Line	N	Neutral Line
L In	Live Line	L	Live Line（100~240V）

Add Device to eWeLink APP

Notice:

Adding to the eWeLink APP process is the same for both the NSPanel Pro 86 and 120 versions. The following example uses the 120 version.

After powering on, click “Start,” choose the language and region, and then select Wi-Fi and input the password to enter the device’s main interface.

Tap “Log in” on the device and tap “+” on the eWeLink App to select “Scan”, then scan the QR code on the device screen by your App.

Add Zigbee Device to NSPanel Pro

Notice:

Adding to the eWeLink APP process is the same for both the NSPanel Pro 86 and 120 versions. The following example uses the 120 version.

Method 1

Method 2

Entry on the central control panel.

Then Set the Zigbee device into the pairing mode and complete the adding by following the prompts.

Entry on the eWeLink App.

Then Set the Zigbee device into the pairing mode and complete the adding by following the prompts.

Add Wi-Fi Device to NSPanel Pro

Notice:

Adding Wi-Fi device process is the same for both the NSPanel Pro 86 and 120 versions. The following example uses the 120 version.

Add Wi-Fi devices on the eWeLink App.

In the main interface of NSPanel Pro on the App, select “Extended Screen Settings” and synchronize the connected Wi-Fi devices to the NSPanel Pro.

Expandable Feature

To enhance the functionality of NSPanel Pro, we provide a variety of additional expandable features that allow it to better serve as a central control panel.

Feature Name	Introduction	Tutorial
Web Shortcut	Allow to search for services within the local network and display them on the screen of the NSPanel Pro, enabling you to view them at any time. Note: This feature is removed in versions after v4.0.0.	https://sonoff.tech/product-review/tutorial/how-to-use-the-new-web-shortcut-feature-in-nspanel-pro-v3-7-0/
Matter Hub	Use NSPanel Pro as a Matter hub on the eWeLink platform to add and control Matter devices from other brands.	https://sonoff.tech/product-review/tutorial/how-to-add-and-control-matter-device-by-nspanel-pro/
Node-RED	Integrate NSPanel Pro and its added Zigbee devices into Node-RED to create more complex smart scenes.	https://sonoff.tech/product-review/tutorial/how-to-make-your-nspanel-pro-work-with-homebridge-or-node-red/
Paral-Sync Add-on	Locally sync Zigbee devices from NSPanel Pro to iHost.	https://sonoff.tech/product-review/tutorial/paral-sync-add-on-available-manage-and-control-the-local-zigbee-devices-of-nspanel-pro-in-ihost/
Advanced Setting	NSPanel Pro now supports F-Droid, allowing you to download official application packages such as Home Assistant.	https://sonoff.tech/blogs/news/nspanel-pro-v4-0-0-update-now-supports-f-droid-and-home-assistant-app-install

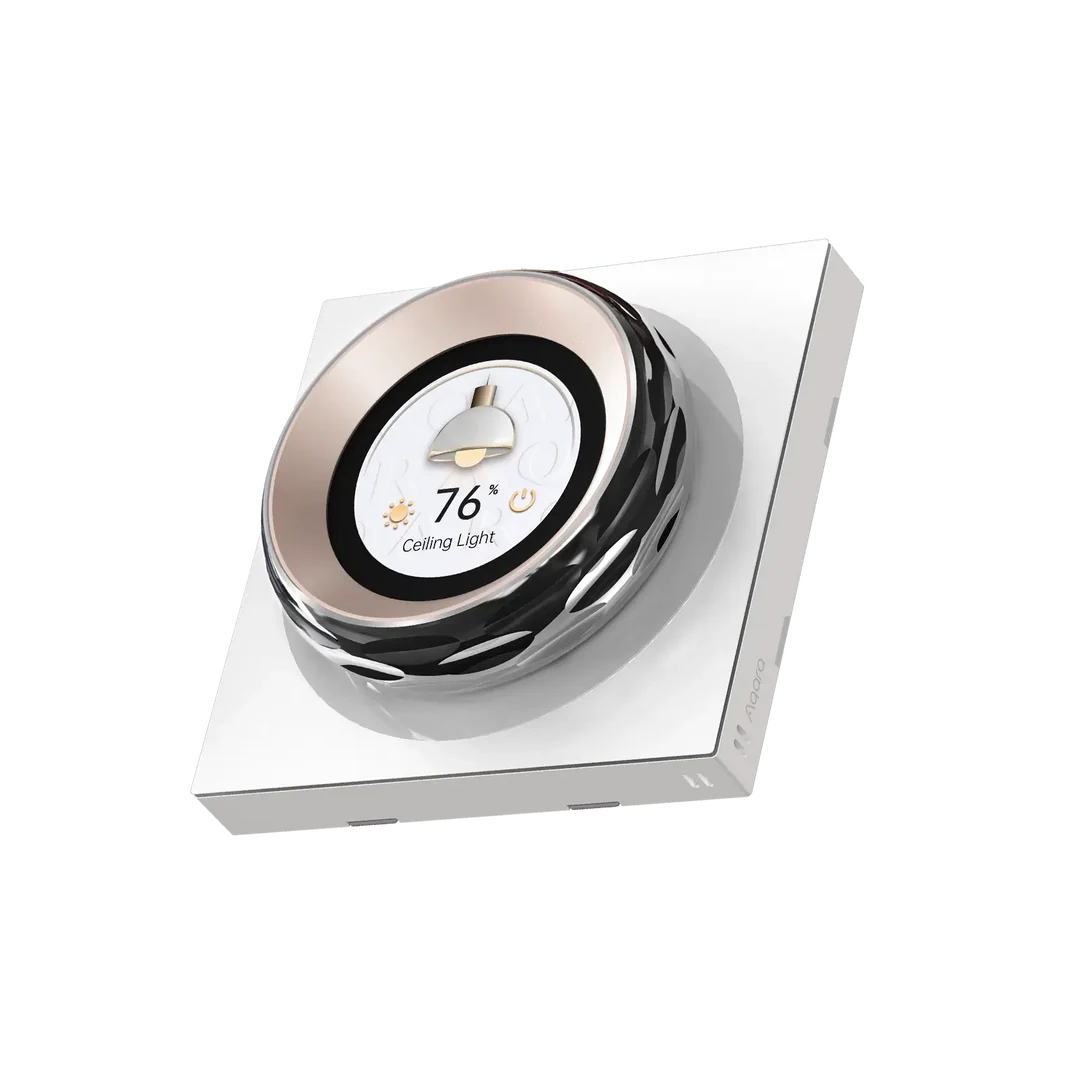

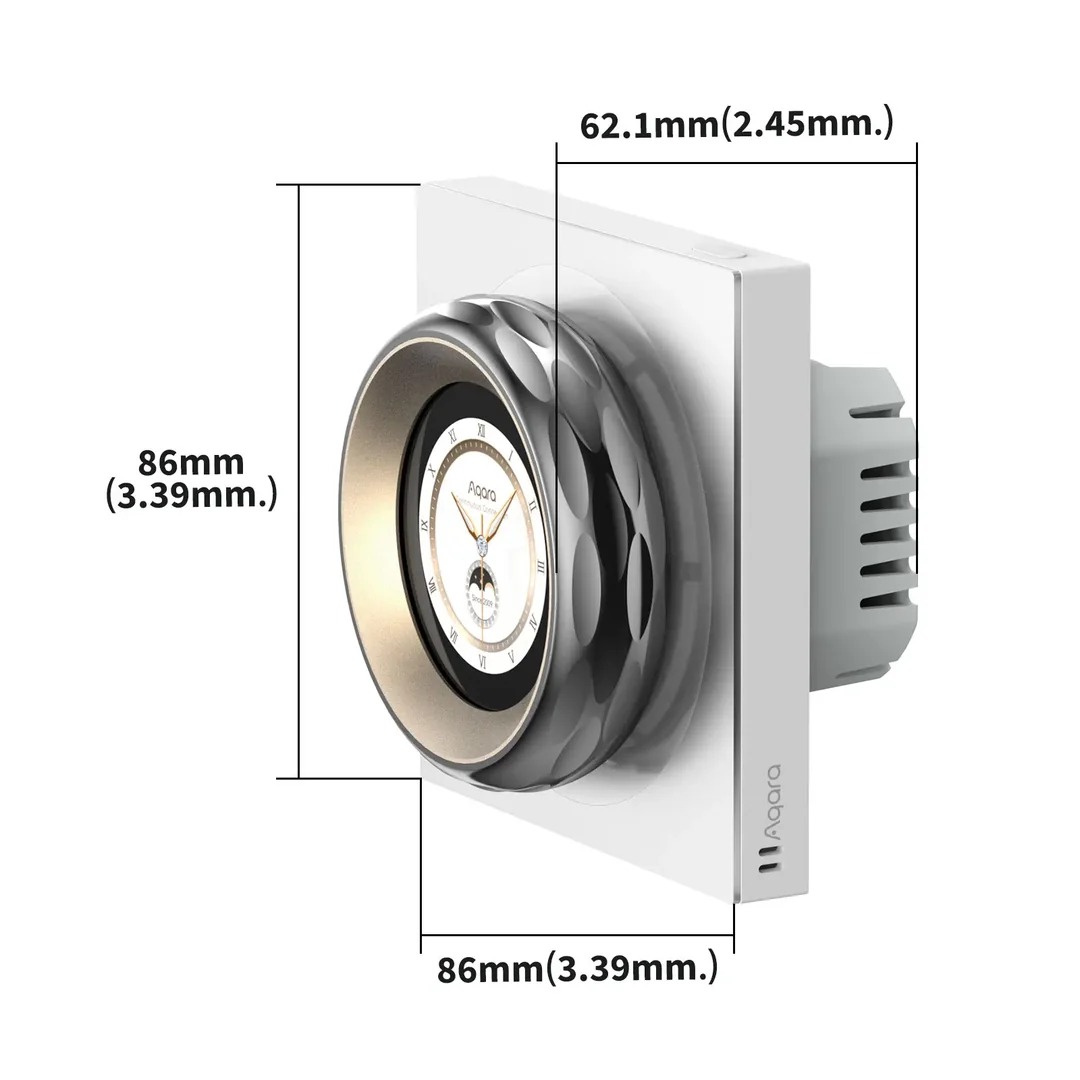

AQARA Touchscreen Dial V1 EU
