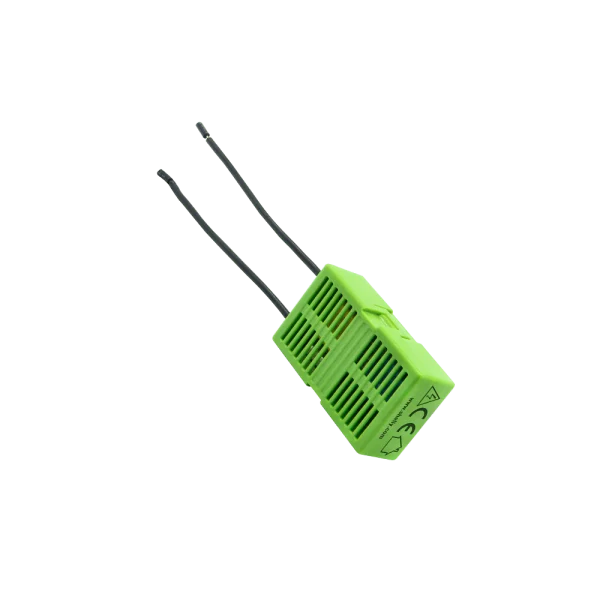

Main features
Perfect to retrofit: The device can be mounted behind the light, requiring minimal space. It connects to both the Neutral and Live wires.
No minimum load condition for other Shelly devices: The device is a Bypass needed for the Shelly Dimmer Gen3 (and up) to work without a Neutral wire.
Compatibility: It is designed and tested to ensure compatibility with а wide range of lights.
Main applications
Residential
MDU (Multi Dwelling Units – apartments, condominiums, hotels, etc.)
Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
Government/municipal
University/college
Device electrical interfaces
Inputs
2 line inputs on cables: 1 O (output coming from Shelly Dimmer Gen3) and 1 N
Supported dimmers
Shelly Dimmer Gen3
Shelly Dimmer Gen4
Specifications
Enlarges the table by opening it in a full screen dialog
Quantity | Value |
|---|---|
Physical | |
Size (HxWxD): | 39x23x13 mm / 1.54×0.91×0.51 inch (without wires) |
Weight: | 8 g / 0.28 oz |
Conductor cross section: | 0.2 mm2 / 24 AWG stranded |
Conductor stripped length: | 0.5 mm / 0.02 in |
Lenght of cables: | 65±5 mm / 2.56±0.2 in |
Mounting: | Inside Light Fixture |
Shell material: | Plastic |
Shell color: | Shell: Lime (same as Dimmer Gen3) Print: Black |
Cable color: | Black |
Environmental | |
Ambient temperature: | -20° C to 40° C / -5° F to 104° F |
Humidity: | 30 % to 70 % RH |
Max. altitude: | 2000 m / 6562 ft |
Electrical | |
Power supply: | 220-240 V~ 50 Hz |
Power consumption: | < 4 W |
Basic wiring diagrams
