Shelly Flood GEN4

R849.00

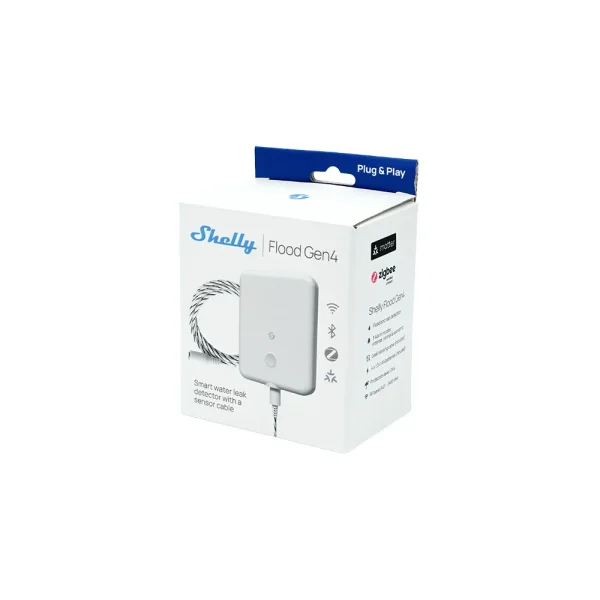

The Shelly Flood Gen4 alerts you when water appears where it shouldn’t – such as under your water heater, dishwasher, or washing machine. It comes with an innovative leak sensor cable that detects water along its entire length, covering larger areas and identifying leaks beyond a single point for unmatched protection in your home. Multiple leak sensor cables can be connected, extending coverage up to 150 meters.

Receive instant alerts directly to your mobile device and customize safety protocols to protect your family and property.

Shelly Flood Gen4 offers Wi-Fi, Zigbee, and Bluetooth connectivity. It also includes a built-in web interface for easy monitoring, control, and settings adjustment

Categories: , Brand:
Guaranteed Safe Checkout

Main features

  • Leak detection for smaller and larger areas via extendable leak sensor cable

  • Supports two modes: Flood Detection and Rain Detection

  • Three built-in flood alarm modes: Intense, Normal, and Economic

  • Remote notifications and built-in buzzer for local alerts

  • Battery-powered for flexibility and uninterrupted operation

  • IP44 protection for durability and environmental resistance

  • Broad compatibility with third-party home automation systems

  • Supports local automation actions for independent operation

  • Support for Shelly Cloud and Shelly Smart Control app

Use cases

  • Immediate Flood Detection
    Receive instant alerts when Shelly Flood Gen4 detects water in areas like basements, bathrooms, or laundry rooms, enabling quick action to prevent damage.

  • Protect Your Home from Water Damage
    Place Shelly Flood Gen4 near vulnerable appliances or plumbing systems. If a leak occurs, you’ll be alerted in real time, helping to minimize potential damage.

  • Monitor High-Risk Areas
    Easily install Shelly Flood Gen4 in any room where flooding is a concern, such as kitchens or under sinks, and receive notifications through your phone without complex setup.

  • Automatic Appliance Shutoff
    Integrate Shelly Flood Gen4 sensor with smart devices to automatically turn off washing machines or dishwashers when a flood is detected, preventing further water damage.

  • Detect Pipe Leaks Early
    Run the leak sensor cable along a suspect pipe to quickly detect the presence of a leak, helping you take action before damage spreads.

Main applications

  • Residential

  • MDU (Multi Dwelling Units – apartments, condominiums, hotels, etc.)…

  • Light commercial (small office buildings, small retail/restaurant/gas station, etc.)…

  • Government/municipal

  • University/college

  • Farming

Integrations





Amazon Alexa supported capabilities

  • Contact Sensor





Google Smart Home supported traits

  • Sensor State





Samsung SmartThings supported capabilities

  • Battery

  • Water Sensor





Simplified internal schematics










Connectivity

  • Wi-Fi

  • Bluetooth

  • Zigbee

  • Matter

Accessories

User interface

Inputs

  • LED Button:

    • Press 1 time: Wakes up the device for 3 minutes. The LED turns on and initiates a state report.

      • Press 1 time: Reports status of the Flood component.

      • Press 2 times rapidly: Sends the device to sleep.

      • Press 3 times rapidly: Puts the device in Zigbee inclusion mode. It stays in this mode for 3 minutes and you can find it in the Home Automation platform through the Zigbee Hub.

      • Press 5 times rapidly: Switch the Device from Matter firmware (default) to Zigbee, or back.

      • Press and hold for 5 seconds: Network reset. The LED flashes slowly. If no action is taken within 3 minutes, the device retains its existing settings.

      • Press and hold for 10 seconds: Resets the device to factory settings.

Outputs

  • Buzzer

    • Long beep (3.5 sec ON / 1.5 sec OFF): Indicates flood detection.

    • Short beep (0.3 sec ON / 5 sec OFF): Indicates low battery when the battery level is below 20%. The low battery alarm will not sound during a flood event (unless the flood alarm is muted via the LED button) or when Economic mode is selected.

  • LED Button Indication:

    • Blue light: AP mode is enabled.

    • Red light: STA mode is active, but the device is not connected to a Wi-Fi network.

    • Yellow light: STA mode is active, and the device is connected to a Wi-Fi network but not connected to the Shelly Cloud, or the Shelly Cloud is disabled.

    • Green light: STA mode is active, and the device is connected to both a Wi-Fi network and the Shelly Cloud.

    • Flashing Purple light: device is in Zigbee commissioning mode.

    • Flashing Red/Blue light: OTA update is in progress.

    • Flashing Yellow light: Device is in identification mode, signaling its presence for user identification.

Alarm Modes

  • Flood Detection Mode – detects a state change and, if water is present, triggers an immediate alarm to alert you of potential flooding.

  • Rain Detection Mode – detects a state change when water is present but does not trigger an alarm, ideal for non-critical scenarios like rain detection.

Enlarges the table by opening it in a full screen dialog









Mode

Alarm Mode

Report State Frequency*

Buzzer**

Buzzer Mute Conditions

Use Case

Flood

Intense

  • Every 30 sec for 5 minutes

  • Every 5 minutes for 30 minutes

  • Every 30 minutes once for 1 hour

  • Every 1 hour for 2 hours

  • Every 2 hours indefinitely

  • ON for 10 minutes

  • Then ON for 1 minute every 5 minutes

  • No Flood

  • Button single push

Protect extremely valuable assets:

  • Lab Equipment

  • Server Room

  • …

Normal (Default)

  • ON for 5 minutes

  • Then ON for 1 minute every 30 minutes

Normal use

Economic

Disabled

N/A

Activate when you won’t visit for a while:

  • Vacation Home

  • Mountain Cabin

  • Country Cottage

Rain

–

Automating outdoor areas, such as controlling motorized awning or sprinklers.











*Continue reporting until successful, then sleep. Report again upon flood state change. If multiple reporting channels are configured, success on any channel will be considered a successful report.

**Buzzer pattern: 3.5 sec ON / 1.5 sec OFF

Specifications

Enlarges the table by opening it in a full screen dialog









Quantity

Value

Physical

Size (HxWxD):

97x76x25 mm / 3.82×2.99×0.98 inch

Weight:

  • 91 g / 3.21 oz (without batteries)

  • 185 g / 6.53 oz (with batteries)

Mounting:

Wall

Shell material:

Plastic

Shell color:

White

Environmental

Ambient working temperature:

-20°C to 40°C / -5°F to 105°F

Humidity:

30% to 70% RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

Batteries

Battery type:

4x AA 1.5 V

Estimated battery life:

approx. 2 years (depending on batteries used, device usage, and network connection strength)

Sensors, meters

Leak sensor cable:

2 m, extendable (up to 150 m), attaches via designated port

Radio

Wi-Fi

Protocol:

802.11 b/g/n/ax

RF band:

2401 – 2483 МHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth

Protocol:

5 (LE)

RF band:

2402 – 2480 MHz

Max. RF power:

< 20 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

Zigbee

Protocols:

802.15.4

RF bands:

2405 to 2480 MHz

Max. RF power:

< 20 dBm

Range:

Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors
(Depends on local conditions)

Microcontroller unit

CPU:

ESP-Shelly-C68F

Flash:

8 MB

Firmware capabilities

Schedules:

No

Webhooks (URL actions):

10 with 2 URLs per hook

Scripting:

No

MQTT:

Yes

UDP:

Yes

KVS (Key-Value Store):

Yes
